NJU4053B is a low-power and low-voltage CMOS analog switch, which is used to control the signal between the two circuits.

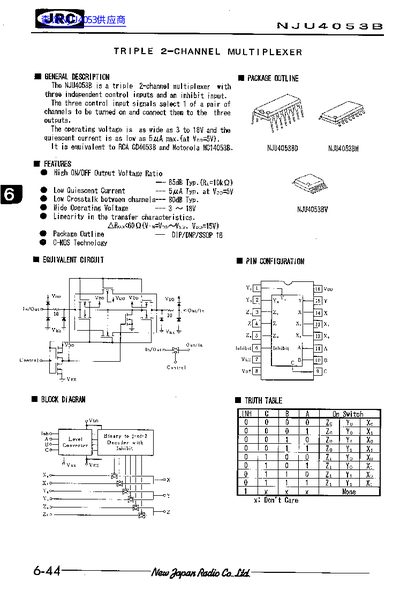

The document describes the NJU4053B, a triple 2-channel multiplexer manufactured by New Japan Radio Co., Ltd. It features three independent control inputs and an inhibit input to select channels for connection to outputs.
Key specifications include a wide operating voltage range of 3V to 18V and a maximum quiescent current of 54µA at Vcc=5V. The device is compatible with RCA CD4053B and Motorola MC14053B equivalents.
| Operating Voltage Range | 3 ~ 18V |
|---|---|
| Quiescent Current (Max) | 54µA at Vcc=5V |
| Operating Temperature Range | -40 ~+85 C |
| Output Voltage Ratio (Typ) | 60dB |
The NJU4053B is equivalent to RCA CD4053B and Motorola MC14053B.
The device is available in DIP, DMP, and SSOP 16 packages.
