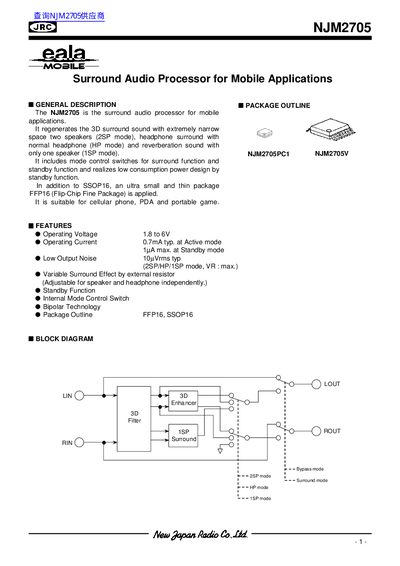

The NJM2705 is a surround audio processor for mobile applications. It regenerates the 3D surround sound with extremely narrow space two speakers (2SP mode), headphone surround with normal headphone (HP mode) and reverberation sound with only one speaker (1SP mode). It includes mode control switches for surround function and standby function and realizes low consumption power design by standby function. In addition to SSOP16, an ultra small and thin package FFP16 (Flip-Chip Fine Package) is applied. It is suitable for cellular phone, PDA and portable game.
The NJM2705 is a surround audio processor specifically designed for mobile applications such as cellular phones, PDAs, and portable game devices. It regenerates 3D surround sound using extremely narrow space two speakers (2SP mode), headphone surround with normal headphones (HP mode), or reverberation sound with only one speaker (1SP mode). The device includes internal mode control switches for the surround function and a standby function to realize low consumption power design.
| Operating Voltage | 1.8 to 6V |
|---|---|
| Operating Current (Active) | 0.7mA typ. |
| Operating Current (Standby) | 1uA max. |
| Output Noise | 10uVrms typ. |
| Operating Temperature Range | -20 to +75 °C |
| Storage Temperature Range | -40 to +125 °C |
The device supports 3D surround sound with two speakers (2SP mode), headphone surround (HP mode), and reverberation with one speaker (1SP mode).
The processor is available in SSOP16 and FFP16 (Flip-Chip Fine Package) formats.
Yes, the device includes a standby function that realizes low consumption power design.
