The MC68160 is an enhanced Ethernet interface transceiver that supports both IEEE 802.3 AUI and 10BASE-T TP interface media connections. It encodes NRZ data to Manchester data and provides the signals required for data communication via 10BASE-T or AUI interfaces. The MC68160 interfaces seamlessly with the Ethernet controller contained in the MC68360 Quad Integrated Communications Controller (QUICC) device. It also interfaces easily to most other industry-standard IEEE 802.3 LAN controllers.

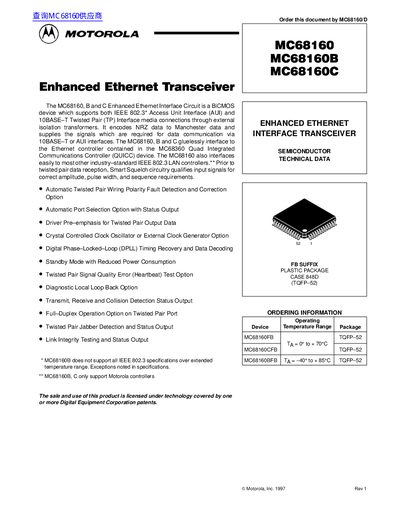

This document is a technical data sheet for the MC68160, B, and C Enhanced Ethernet Interface Circuit. It describes a BiCMOS device that supports both IEEE 802.3 Access Unit Interface (AUI) and 10BASE-T Twisted Pair Interface media connections through external isolation transformers.
The datasheet provides detailed information on the device's functionality, including data encoding from NRZ to Manchester, pin descriptions for controller, AUI, and twisted pair interfaces, electrical characteristics, switching specifications, and functional descriptions of features such as Smart Squelch, automatic polarity fault detection, and diagnostic loop back options.
The device supports both IEEE 802.3 Access Unit Interface (AUI) and 10BASE-T Twisted Pair Interface media connections.
It encodes NRZ data to Manchester data.
