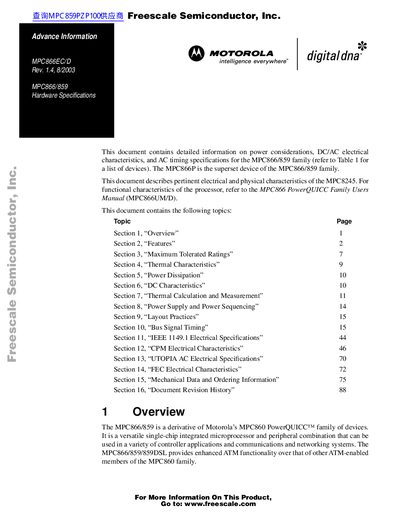

This document provides detailed information on the power considerations, DC/AC electrical characteristics, and AC timing specifications for the MPC866/859 family.
This document provides detailed hardware specifications for the MPC866/859 family of devices, which are derivatives of Motorola's MPC860 PowerQUICC family. It serves as a technical reference for power considerations, DC/AC electrical characteristics, AC timing specifications, and mechanical data.
The datasheet details the functionality supported by various members of the family, including cache sizes, memory controllers, and peripheral capabilities such as Ethernet, ATM, and serial communication interfaces.
The device supports operation up to 133 MHz.
There are seven external interrupt request (IRQ) lines available.
