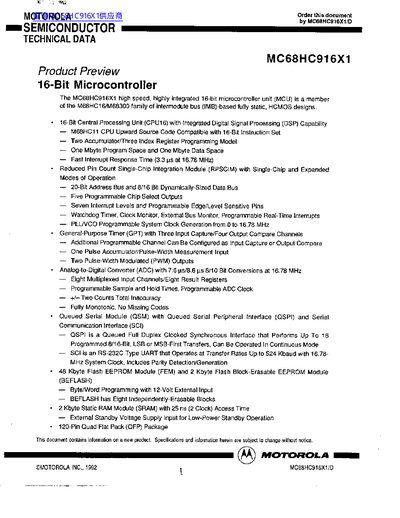

This document provides technical specifications for the MC68HC916X1, a high-speed, highly integrated 16-bit microcontroller unit (MCU) belonging to the M68HC16/M68300 family. It features an integrated Digital Signal Processing (DSP) capability and is fully static HCMOS design.
| CPU Architecture | 16-Bit Central Processing Unit (CPU16) with Integrated Digital Signal Processing (DSP) Capability |
|---|---|
| Clock Speed | 0 to 16.78 MHz |
| Flash Memory Size | 48 Kbyte |
| Static RAM Size | 2 Kbyte |
| Package Type | 120-Pin Quad Flat Pack (QFP) |
The SCI operates at transfer rates up to 524 Kbaud with a 16.78-MHz system clock.
The device supports seven interrupt levels.
