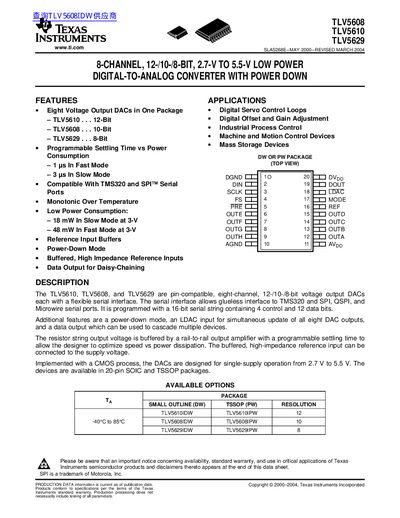

TLV5610, TLV5608, and TLV5629 are pin-compatible, eight-channel, 12-/10-/8-bit voltage output DACs each with a flexible serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI, and Microwire serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits. Additional features are a power-down mode, an LDAC input for simultaneous update of all eight DAC outputs, and a data output which can be used to cascade multiple devices.
The TLV5608, TLV5610, and TLV5629 are low-power, 8-channel DACs available in 10-bit, 12-bit, and 8-bit resolutions respectively. These devices feature a flexible serial interface compatible with TMS320 and SPI/Microwire ports, allowing for glueless interfacing to microcontrollers.
Implemented using CMOS technology, these converters operate from a single supply voltage of 2.7 V to 5.5 V. They include features such as a programmable settling time versus power consumption trade-off, buffered high-impedance reference inputs, and an LDAC input for simultaneous updating of all eight DAC outputs.
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Number of Channels | Eight |
| Power Down Supply Current | 4 uA |
The devices operate from -40°C to 85°C.
The devices operate over a free-air temperature range of -40°C to 85°C.
The devices consume 18 mW in slow mode when operating at a supply voltage of 3 V.
