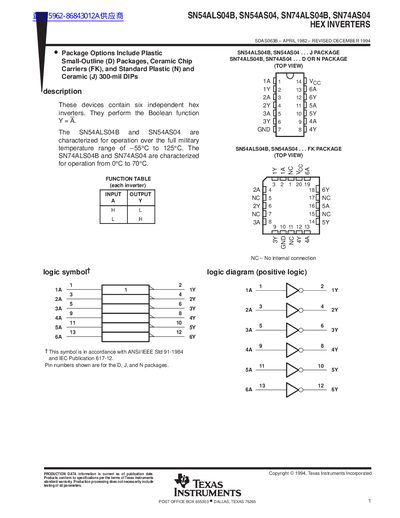

This document is the datasheet of SN54ALS04B, SN54AS04, SN74ALS04B, SN74AS04 HEX INVERTERS, which contains 6 independent HEX INVERTERS and can work in the temperature range of -55°C to 125°C
The document describes the SN54ALS04B, SN54AS04, SN74ALS04B, and SN74AS04 Hex Inverters. These devices contain six independent inverters that perform the Boolean function Y=A. The military-grade versions (SN54 series) are characterized for operation over a temperature range of -55°C to 125°C, while commercial versions (SN74 series) operate from 0°C to 70°C.
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| High-level Input Voltage (VIH) | 2 V |
| Low-level Input Voltage (VIL) | 0.8 V |
| Operating Temperature Range | -55°C to 125°C (Military) or 0°C to 70°C (Commercial) |
The recommended operating supply voltage ranges from 4.5 V to 5.5 V.
