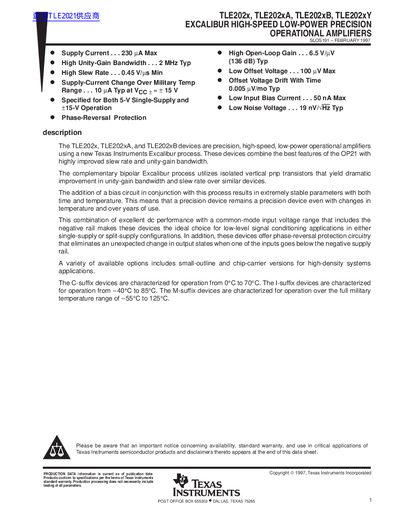

TLE202x, TLE202xA, TLE202xB, TLE202xY are the new generation of precision, high-speed, low-power operational amplifiers using the Texas Instruments Excalibur process.
The TLE202x, TLE202xA, TLE202xB, and TLE202xY devices are precision, high-speed, low-power operational amplifiers utilizing a new Texas Instruments Excalibur process. These complementary bipolar devices combine excellent DC performance with a common-mode input voltage range that includes the negative rail, making them ideal for low-level signal conditioning in single-supply or split-supply configurations.
| Supply Current (Max) | 230 µA |
|---|---|
| Unity-Gain Bandwidth (Typ) | 2 MHz |
| Slew Rate (Min) | 0.45 V/µs |
| Offset Voltage Drift With Time | 0.005 µV/mo Typ |
| Input Bias Current (Max) | 50 nA |
| Noise Voltage (Typ) | 19 nV/√Hz |
The maximum supply current is 230 µA.
Yes, they are specified for both 5-V single-supply and ±15-V operation.
The typical unity-gain bandwidth is 2 MHz.
