TL084 is a high performance, high gain, low noise, J-FET input quad operational amplifier from Texas Instruments, with wide common mode voltage range, low input bias current and output short circuit protection.
This document provides technical specifications and application information for the TLO84 series of general-purpose J-FET quad operational amplifiers. The devices feature a wide common-mode voltage range, low input bias current, and internal frequency compensation.

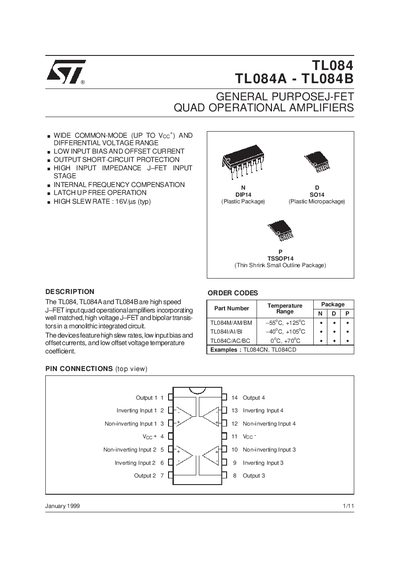

The datasheet includes absolute maximum ratings, detailed electrical characteristics tables, typical applications circuits such as audio distribution amplifiers and bandpass filters, and mechanical package data for various pin configurations including DIP14 and TSSOP14.
| Slew Rate (typ) | 16 V/us |
|---|---|
| Supply Voltage Range | -18 V to +18 V |
| Operating Temperature (TLO84C) | 0 to 70 °C |
| Operating Temperature (TLO84I) | -40 to 105 °C |
The series includes TLO84M/AM/BM for -55°C to +125°C, TLO84VAVBI for -40°C to +105°C, and TLO84C/AC/BC for 0°C to +70°C.
The typical slew rate for these devices is 16V/us.
Operating temperatures range from -55 to +125°C, -40 to +105°C, or 0 to +70°C depending on the specific part number.
The absolute maximum supply voltage rating is +18 V.
