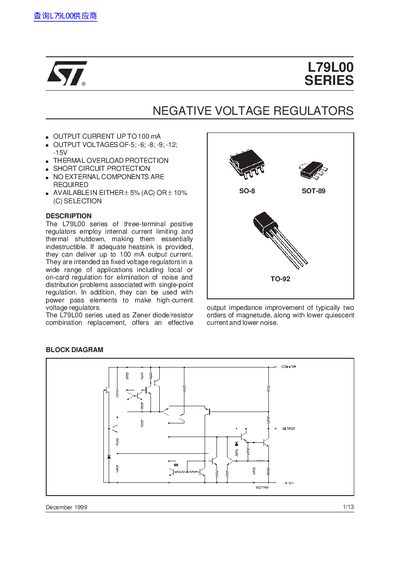

This document introduces the features of L79L00 series negative voltage regulators, including output current, output voltage, temperature range, input voltage, etc.
The L79L00 series consists of three-terminal negative voltage regulators designed for local or on-card regulation. These devices feature internal current limiting and thermal shutdown protection, allowing them to deliver up to 100 mA of output current without external components in many configurations. They are available in SOT-89 and TO-92 packages with various output voltages including -5V, -6V, -8V, -9V, -12V, and -15V.
| Output Current | Up to 100 mA |
|---|---|
| Available Output Voltages | -5V, -6V, -8V, -9V, -12V, -15V |
| Storage Temperature Range (Standard) | -40 to 150 °C |
| Dropout Voltage | 1.7 V |
No, the document states that no external components are required for basic operation.
The L79L00 series can deliver up to 100 mA of output current if adequate heatsink is provided.
The device provides fixed output voltages of -5, -6, -8, -9, -12, and -15 V.
The operating junction temperature range for these specific models is 0 to 125 °C.
