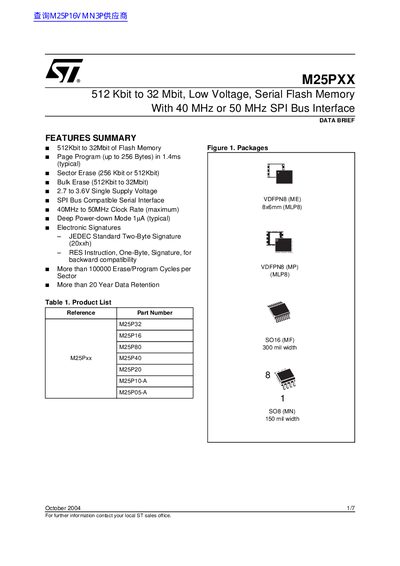

ST M25PXX 512 Kbit to 32 Mbit Low Voltage Serial Flash Memory With 40 MHz or 50 MHz SPI Bus Interface handbook

Update: 29 September, 2023

M25Pxx is a 512Kbit to 32Mbit (2M x 8) Serial Flash Memory with advanced write protection mechanisms, accessed by a high-speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as a number of sectors, each containing 256 or 128 pages. Each page is 256 bytes wide. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

---

File format: PDF

Size: -

MD5 Checksum: 8012DB8F77619522CBE3E48FAD0CE6FD

Publication date: 06 June, 2012

Downloads: -

PDF Link: ST M25PXX 512 Kbit to 32 Mbit Low Voltage Serial Flash Memory With 40 MHz or 50 MHz SPI Bus Interface handbook PDF
