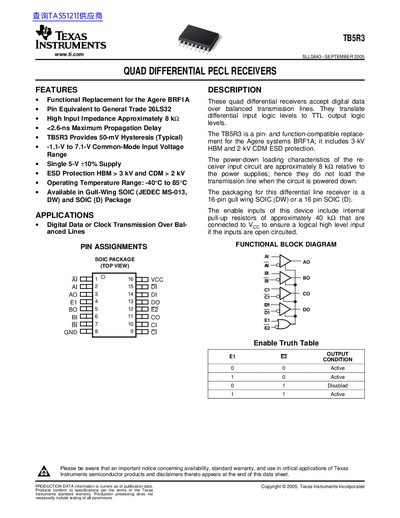

TB5R3 is a quad differential PECL receiver from Texas Instruments that can accept digital data and convert it to TTL output logic levels. TB5R3 is a pin- and function-compatible replacement for the Agere systems BRF1A; it includes 3-kV HBM and 2-kV CDM ESD protection.
The TB5R3 is a pin- and function-compatible replacement for the Agere systems BRF1A. These devices accept digital data over balanced transmission lines and translate differential input logic levels to TTL output logic levels. The device features high input impedance, low propagation delay, and includes 3-kV HBM ESD protection.
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| Operating Temperature Range | -40 °C to 85 °C |
| Maximum Propagation Delay | <2.6 ns |
The maximum propagation delay is less than 2.6 ns.
The maximum propagation delay is less than 2.6 ns.
It operates with a single supply of 5 V ± 10%.
The device provides 50-mV of typical hysteresis.
