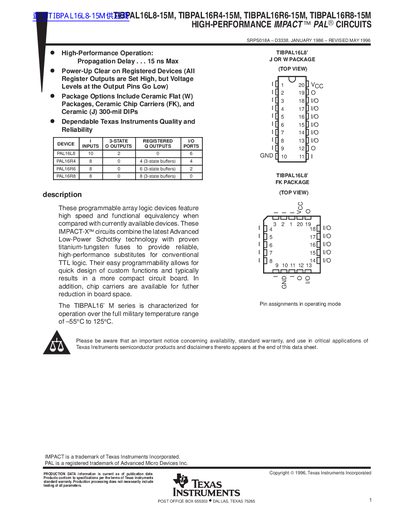

TIBPAL16L8-15M, TIBPAL16R4-15M, TIBPAL16R6-15M, TIBPAL16R8-15M are high-performance PAL circuits from Texas Instruments. These devices combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic. They are easy to program, allowing for quick design of custom functions and typically result in a more compact circuit board. In addition, chip carriers are available for further reduction in board space. The TIBPAL16’ M series is characterized for operation over the full military temperature range of –55°C to 125°C.
The document details the TIBPAL16M series of programmable array logic devices, which combine Advanced Low-Power Schottky technology with proven titanium-tungsten fuses. These circuits provide high-speed operation and functional equivalency to conventional TTL logic while allowing for quick design of custom functions in a compact form factor.
The datasheet covers four specific models: TIBPAL16L8, TIBPAL16R4, TIBPAL16R6, and TIBPAL16R8. It includes functional block diagrams, logic diagrams showing fuse numbering increments, pin assignments for various packages (Ceramic Flat, Ceramic Chip Carriers, DIPs), and detailed parameter measurement information including timing waveforms.
The maximum propagation delay is 15 ns.
They are characterized for operation over the full military temperature range of -55°C to 125°C.
All input pulses must have a PRR less than 10 MHz.
