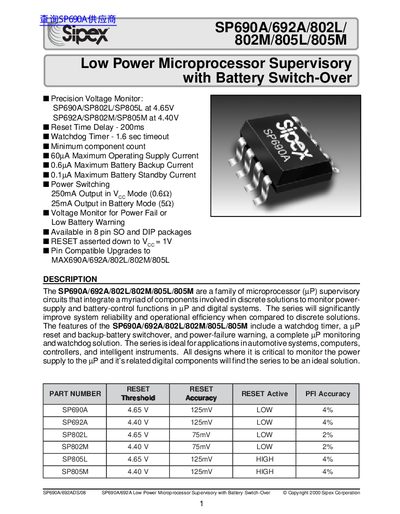

Sipex SP690A/692A/802L/802M/805L/805M Low Power Microprocessor Supervisory with Battery Switch-Over is a family of microprocessor (µP) supervisory circuits that integrate a myriad of components involved in discrete solutions to monitor power-supply and battery-control functions in µP and digital systems. The series will significantly improve system reliability and operational efficiency when compared to discrete solutions. The features of the SP690A/692A/802L/802M/805L/805M include a watchdog timer, a µP reset and backup-battery switchover, and power-failure warning, a complete µP monitoring and watchdog solution. The series is ideal for applications in automotive systems, computers, controllers, and intelligent instruments. All designs where it is critical to monitor the power supply to the µP and it’s related digital components will find the series to be an ideal solution.
The document describes a family of microprocessor supervisory circuits designed to monitor power-supply and battery-control functions in digital systems. These devices integrate features such as a watchdog timer, reset generation, and backup-battery switchover to improve system reliability.
Key specifications include a maximum operating supply current of 60uA and a maximum battery backup current of 0.6uA. The circuits are available in 8-pin SO and DIP packages and offer pin-compatible upgrades for MAX690A/692A series devices.
| Maximum Operating Supply Current | 60uA |
|---|---|
| Maximum Battery Backup Current | 0.6uA |
| Reset Time Delay | 200ms |
| Watchdog Timer Timeout | 1.6 sec |
| Package Types | 8 pin SO and DIP packages |
The maximum operating supply current is 60uA.
Yes, it offers pin-compatible upgrades to MAX690A/692A/802L/802M/805L.
The watchdog timer has a 1.6 second timeout.
