74LS682 is an integrated circuit that can be supplied by TI company

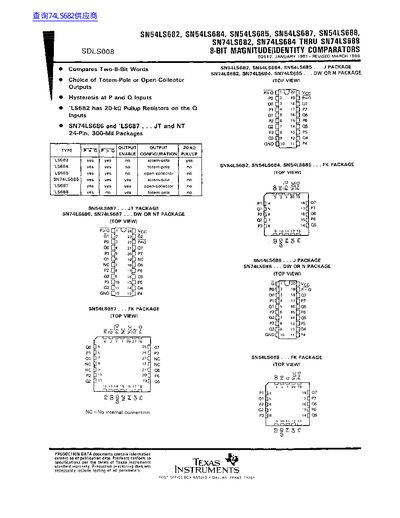

The document covers a series of 8-bit magnitude/identity comparators designed to compare two eight-bit binary or BCD words. The devices offer various output configurations, including Totem-Pole and Open-Collector outputs, with specific models like the LS682 featuring 20-kΩ pullup resistors on Q inputs for analog or switch data applications.
The datasheet details electrical characteristics over recommended operating free-air temperature ranges, switching characteristics at Vcc = 5V, and absolute maximum ratings. It includes logic diagrams for positive logic configurations and function tables defining the relationship between data enables (P=Q, P>Q) and inputs.
The series includes devices with Totem-Pole outputs (LS682, LS684, LS686, LS688) and Open-Collector outputs (LS685, LS687).
Yes, the LS682 features 20-kΩ pullup termination resistors on the Q inputs for analog or switch data.
The P<@ function can be generated by applying the P=Q and PSO outputs to a 2-input NAND gate.
