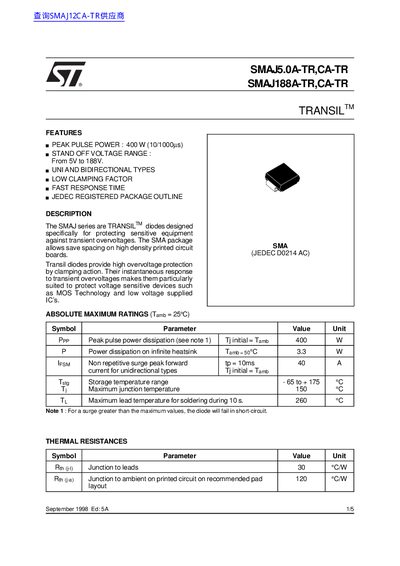

The document describes the features and characteristics of the SMAJ series TRANSILTM diodes, including peak pulse power, standoff voltage range, unidirectional and bidirectional types, low clamping factor, and fast response time.
This document describes the SMAUJ series of TRANSIL™ diodes designed specifically for protecting sensitive equipment against transient overvoltages. The devices are available in unidirectional and bidirectional types within a stand-off voltage range from 5V to 188V, housed in an JEDEC registered SMA package.
| Peak Pulse Power Dissipation (10/1000us) | 400 W |
|---|---|
| Stand Off Voltage Range | 5V to 188V |
| Maximum Junction Temperature | 150 °C |
| Storage Temperature Range | -65 to +175 °C |
The peak pulse power dissipation is 400 W for a 10/1000us pulse.
Yes, the series includes both UNI AND BIDIRECTIONAL TYPES.
