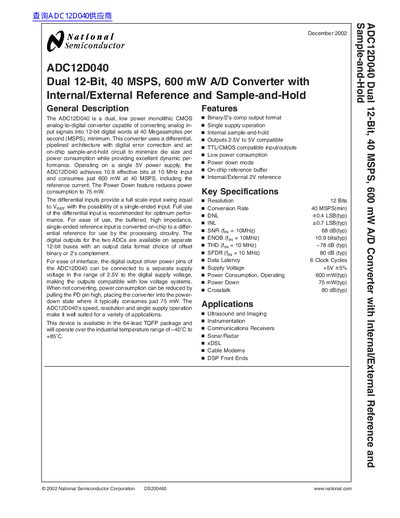

The ADC12D040 is a low power monolithic CMOS analog-to-digital converter (ADC) from TI that can convert two analog input signals simultaneously with a maximum sampling rate of 40MSPS and an output accuracy of 10.9 effective bits.
The ADC12D040 is a low-power monolithic CMOS analog-to-digital converter featuring a differential pipelined architecture with digital error correction. It operates on a single +5V supply and includes an internal sample-and-hold circuit, minimizing die size while providing excellent dynamic performance.
| Resolution | 12 Bits (min) |
|---|---|
| Signal-to-Noise Ratio (10 MHz) | 68 dB (min) |
| Effective Number of Bits (10 MHz) | 10.9 Bits |
| Operating Temperature Range | -40°C to +85°C |
The device offers a choice of offset binary or 2's complement formats.
Yes, the digital output driver power pins can be connected to a supply between 2.5V and the digital supply voltage.
Yes, it provides a possibility for single-ended input by connecting the VinB- pin to Vref.
