74AC125 is a four-channel non-inverting buffer with TRI-STATE output produced by National Semiconductor Corporation. The product has ICC reduced by 50%, output source-sink 24mA, TTL-compatible outputs and other features.

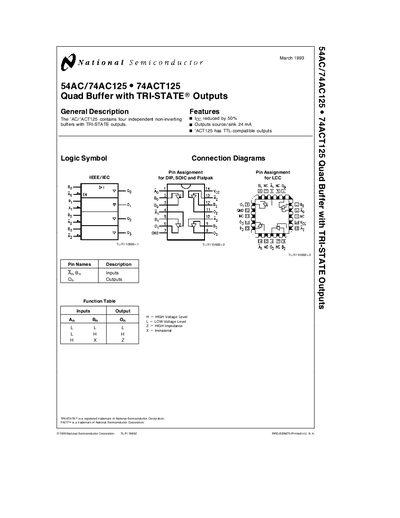

This document is a technical datasheet for the National Semiconductor 54AC/74AC125 and 74ACT125 devices. It describes these components as four independent non-inverting buffers featuring TRI-STATE outputs, available in various logic families including AC and TTL-compatible ACT variants.
| Outputs source/sink current | 24 mA |
|---|---|
| Operating temperature (Commercial) | -40°C to +85°C |
| Operating temperature (Military) | -55°C to +125°C |
| Supply Voltage Range (AC) | 2.0V to 6.0V |
| Supply Voltage Range (ACT) | 4.5V to 5.5V |
The device contains four independent non-inverting buffers with TRI-STATE outputs.
Yes, the 74ACT125 family has TTL-compatible outputs.
