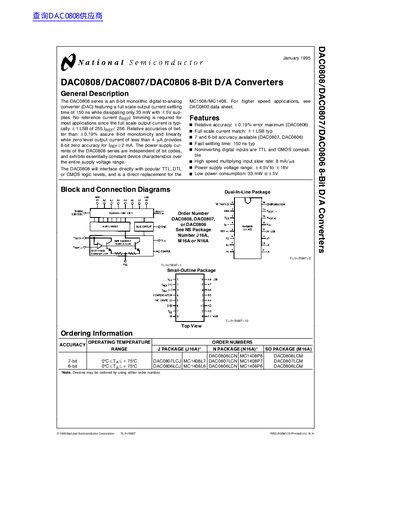

The TL�H�5687 DAC0808�DAC0807�DAC0806 8-Bit D�A Converters is an 8-bit monolithic digital-to-analog converter (DAC) from Texas Instruments that features a fast output current settling time and low power consumption.
The document describes the DAC0808 series, an 8-bit monolithic digital-to-analog converter (DAC) designed with a full scale output current settling time of 150 ns. It operates with +5V supplies and dissipates only 33 mW, requiring no reference current trimming for most applications due to its high relative accuracy.
| Relative Accuracy (Error Relative to Full Scale Io) | +0.19% max for DAC0808 |
|---|---|
| Power Supply Voltage Range | +4.5V to +18V |
| Low Power Consumption | 33 mW @+5V |
| Operating Temperature Range (DAC0808LC) | 0°C to +75°C |
Yes, noninverting digital inputs are TTL and CMOS compatible.
The series offers 8-bit, 7-bit (DAC0807), and 6-bit (DAC0806) accuracy.
