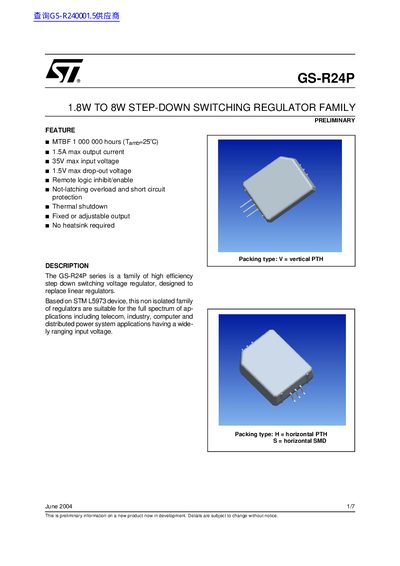

ST GS-R24P handbook

The GS-R24P series is a family of high efficiency step down switching voltage regulators, designed to replace linear regulators. It has a MTBF of 1,000,000 hours (Tamb=25°C), maximum output current of 1.5A, maximum input voltage of 35V, maximum drop-out voltage of 1.5V, remote logic inhibit/enable feature, non-latching overload and short circuit protection, thermal shutdown, fixed or adjustable output, and no heatsink required.

Brand: STMicroelectronics
File format: PDF
Published: 05 June, 2012
Updated: 28 September, 2023
MD5 checksum: 37A672B841B3D340D0FFF819163403A1
PDF: ST GS-R24P handbook PDF

Download PDF
