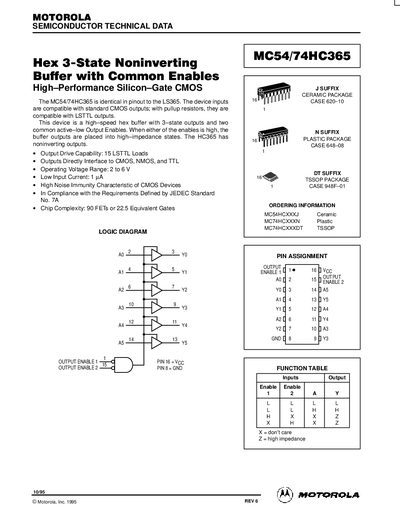

The MC54/74HC365 is a high-performance silicon-gate CMOS, identical in pinout to the LS365. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. This device is a high-speed hex buffer with 3-state outputs and two common active-low Output Enables. When either of the enables is high, the buffer outputs are placed into high-impedance states. The HC365 has noninverting outputs.
The document describes the MC54/74HC365, a high-performance silicon-gate CMOS device featuring six noninverting buffers. It includes two active-low output enables that place all outputs into a high-impedance state when either is high. The inputs are compatible with standard CMOS outputs and can interface directly to LSTTL outputs using pullup resistors.
| Operating Voltage Range | 2 to 6 V |
|---|---|
| Output Drive Capability | 15 LSTTL Loads |
| Low Input Current | 1 pA |
| Chip Complexity | 90 FETs or 22.5 Equivalent Gates |
The device features noninverting outputs with two common active-low Output Enables.
Yes, with pullup resistors, the device inputs are compatible with LSTTL outputs.
