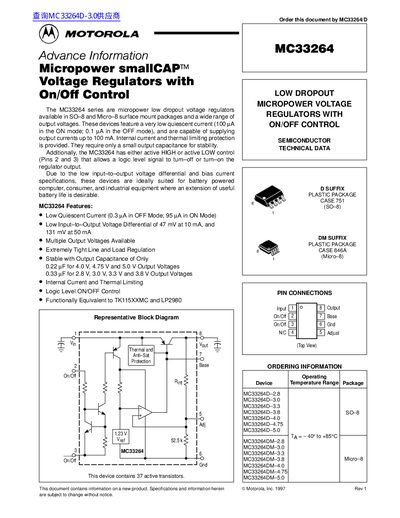

The MC33264 series are micropower low dropout voltage regulators available in SO-8 and Micro-8 surface mount packages and a wide range of output voltages.
The MC33264 series are micropower low dropout voltage regulators available in SO-8 and Micro-8 surface mount packages. These devices feature a very low quiescent current (100 µA in the ON mode; 0.1 µA in the OFF mode) and can supply output currents up to 100 mA.
| Output Current | 100 mA |
|---|---|
| Quiescent Current (OFF Mode) | 0.3 µA typical |
| Operating Junction Temperature | -40 to +125 °C |
| Dropout Voltage (at 10 mA) | 47 mV typical |
The device is available in multiple output voltage options including 2.8 V, 3.0 V, 3.3 V, 3.8 V, 4.0 V, 4.75 V, and 5.0 V.
The regulators are available in SO-8 (D suffix) and Micro-8 (DM suffix) surface mount packages.
Yes, internal current and thermal limiting protection is provided to protect the device.
