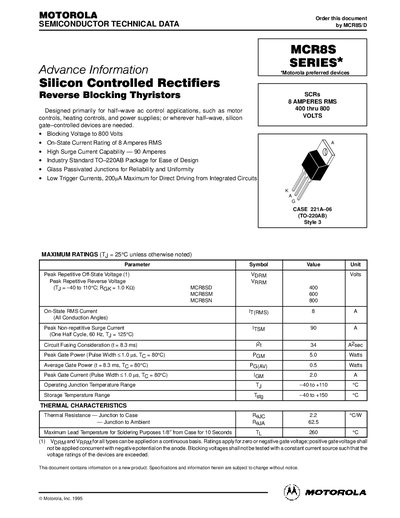

Motorola Thyristor Device Data is a data document about Motorola thyristor devices, which describes the features, characteristics, and main application areas of the device.
This document provides technical data for the Motorola MCR8S series, which includes Silicon Controlled Rectifiers (SCRs) and Reverse Blocking Thyristors. The devices are designed primarily for half-wave AC control applications such as motor controls, heating controls, and power supplies. They feature a maximum blocking voltage of 800 Volts and an on-state current rating of 8 Amperes RMS.
| On-State RMS Current | 8 A |
|---|---|
| Peak Non-repetitive Surge Current | 90 A |
| Operating Junction Temperature Range | -40 to +110 °C |
| Thermal Resistance — Junction to Case | 2.2 °C/W |
These devices are designed primarily for half-wave AC control applications such as motor controls, heating controls, and power supplies.
The on-state RMS current rating is 8 Amperes.
The device has a peak non-repetitive surge current capability of 90 Amperes.
