M28W320ECT and M28W320ECB are 3V-supply 32Mbit (2Mb x16, Boot Block) Flash Memory. Main features include: supply voltage of VDD = 2.7V to 3.6V core power supply, VDDQ= 1.65V to 3.6V for input/output, VPP = 12V for fast programming (optional), access time of 70, 85, 90, 100ns, programming time of 10µs (typical), double-word programming option, quadruple-word programming option, common Flash interface, parameter blocks (top or bottom location), main blocks, all blocks locked at power-up, any combination of blocks can be locked, WP for block lock-down, 128-bit user programmable OTP cells, 64-bit unique device identifier, automatic standby mode, programming and erase suspend, 100,000 program/erase cycles/block, electronic signature (manufacturer code: 20h, top device code, M28W320ECT: 88BAh, bottom device code, M28W320ECB: 88BBh) etc.
File format: PDF
Size: -
MD5 Checksum: 35E3E63C890DCA0ADD7B51E878337D00
Publication date: 05 June, 2012
Downloads: -

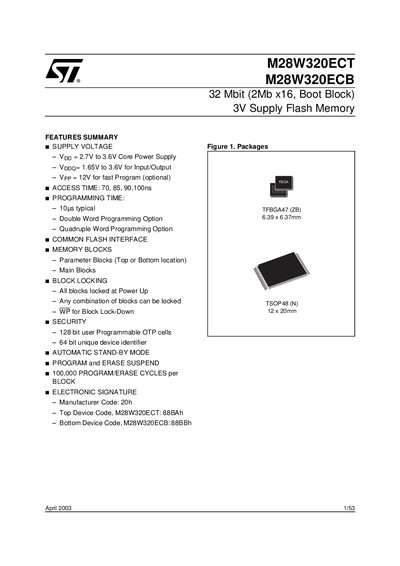

PDF Link: ST M28W320ECT M28W320ECB 32 Mbit (2Mb x16 Boot Block) 3V Supply Flash Memory handbook PDF
