The EDI8F81026C is a 8Mb CMOS Static RAM produced by White Electronic Designs Corporation. It is based on two 512Kx8 Static RAMs and mounted on an FR4 substrate. The product has a 36 pin DIP package and supports the JEDEC approved revolutionary pinout. All inputs and outputs are compatible with TTL and only need a single 5V supply. The product is fully asynchronous and does not require clocks or refreshing during operation.

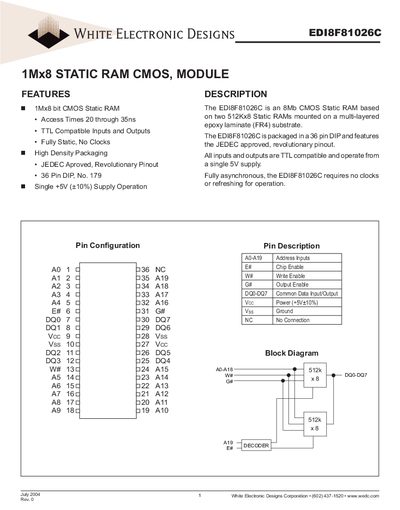

The document describes the EDI8F81026C, an 8Mb CMOS Static RAM module based on two 512Kx8 chips mounted on a multi-layered epoxy laminate substrate. It is packaged in a 36-pin DIP with a JEDEC-approved pinout and operates from a single +5V supply without requiring clocks or refreshing.
| Capacity | 1M x 8 bit (8Mb) |
|---|---|
| Access Times | 20 through 35ns |
It is an 8Mb CMOS Static RAM module based on two 512Kx8 Static RAMs.
The module is packaged in a 36 pin DIP.
