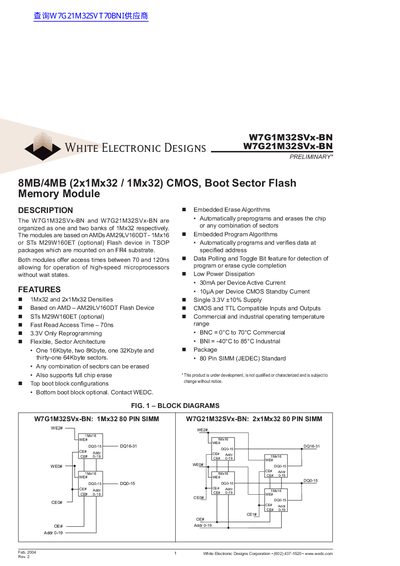

The W7G1M32SVx-BN and W7G21M32SVx-BN are 1Mx32 and 2x1Mx32 storage modules based on AMD's AM29LV160DT - 1Mx16 or ST's M29W160ET (optional) Flash device, packaged in TSOP and mounted on an FR4 substrate. Both modules offer access times of 70ns and 120ns, respectively, for use with high-performance microprocessors without wait states.
This document describes the W7G1M32SVx-BN and W7G21M32SVx-BN, which are organized as one and two banks of 1Mx32 respectively. The modules utilize AMD AM29LV160DT or ST M29W160ET Flash devices mounted on an FR4 substrate within TSOP packages.
Both models offer access times between 70 and 120ns, allowing for high-speed microprocessor operation without wait states. Key features include flexible sector architecture with embedded erase and program algorithms, low power dissipation (30mA active current), and compatibility with commercial or industrial operating temperature ranges.
| Density | 1Mx32 and 2x1Mx32 |
|---|---|
| Access Time | 70ns to 120ns |
| Supply Voltage | 3.3V Only (+10%) |
| Active Current | 30mA per Device |
| Standby Current | 10uA per Device |
| Package Type | 80 Pin SIMM (JEDEC) |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
The modules are based on AMDs AM29LV160DT or STs M29W160ET (optional) Flash device.
They are available in an 80 Pin SIMM (JEDEC) Standard package.
The modules support only a single 3.3V supply with a +10% tolerance.
