WS512K32V-XXX 512Kx32 SRAM 3.3V MODULE is a low power CMOS product with TTL compatible inputs and outputs, fully static operation, no clock or refresh required. The product adopts three-state output, built-in decoupling capacitors and multiple ground pins, which can achieve low noise operation.

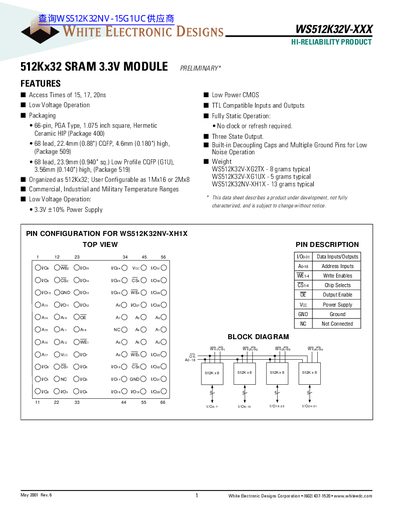

This document is a preliminary datasheet for the White Electronic Designs WS512K32V-XXX, a high-reliability Static Random Access Memory (SRAM) module. The device operates at 3.3V with access times of 15, 17, or 20ns and supports commercial, industrial, and military temperature ranges.
The SRAM is organized as 512Kx32 but is user-configurable into 1Mx16 or 2Mx8 modes. It features fully static operation requiring no clock or refresh, TTL-compatible inputs/outputs, and built-in decoupling caps for low-noise performance.
| Organization | 512Kx32 (configurable as 1Mx16 or 2Mx8) |
|---|---|
| Supply Voltage | 3.3V +10% |
| Access Times | 15, 17, or 20ns |
| Operating Temperature (Military) | -55°C to +125°C |
Yes, it operates fully statically with no clock or refresh required.
The module uses a low voltage operation of 3.3V +10%.
Yes, it is user-configurable as 1Mx16 or 2Mx8.
