This document describes the features and characteristics of the products from White Electronic Designs.

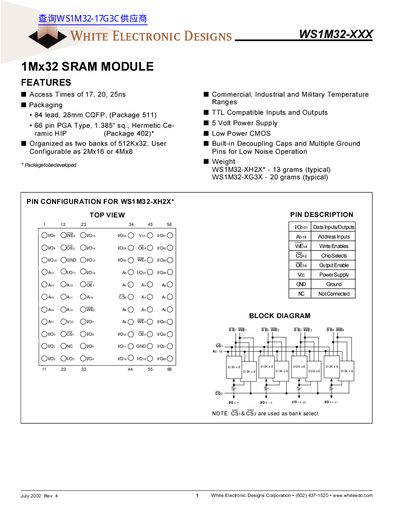

This document is a datasheet for the White Electronic Designs WS1M32-XXX series of 1Mx32 SRAM modules. The device is organized as two banks of 512Kx32 and can be user-configurable as 2Mx16 or 4Mx8. It supports commercial, industrial, and military temperature ranges with TTL compatible inputs and outputs.
| Memory Organization | 1Mx32 (two banks of 512Kx32) |
|---|---|
| Access Times | 17, 20, 25ns |
| Supply Voltage | 5 Volt |
| Operating Temperature (Commercial) | -40 to +85 °C |
| Operating Temperature (Military) | -55 to +125 °C |
The available access times are 17, 20, and 25 nanoseconds.
Yes, the device is user-configurable as 2Mx16 or 4Mx8.
The module requires a 5 Volt power supply.
