This document describes an SMT inductor with features of high Q factor, high resonance frequency, and high L value. The inductor is suitable for filtering of supply voltages, coupling, decoupling, as well as applications in antenna systems, automotive electronics, and telecommunications terminals.

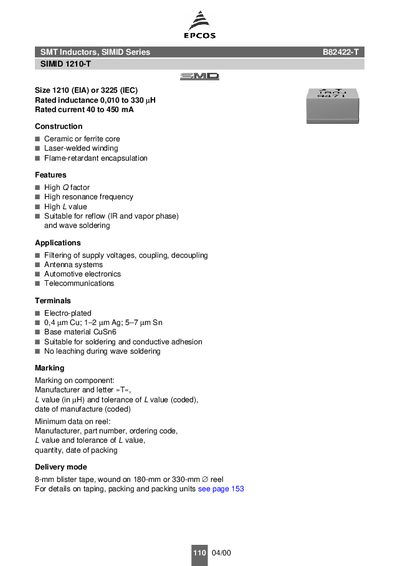

This document is a technical datasheet for the EPCOS SMT Inductors, SIMID Series B82422-T (SIMID 1210-T). The components are available with either ceramic or ferrite cores and feature laser-welded windings with flame-retardant encapsulation. They are designed to be suitable for reflow soldering via IR and vapor phase methods as well as wave soldering.
| Size | 1210 (EIA) or 3225 (IEC) |
|---|---|
| Rated inductance | 0.010 to 330 uH |
| Rated current | 40 to 450 mA |
| Core material options | Ceramic or ferrite core |
| Operating temperature range | -55°C to +125°C |
The components are suitable for reflow (IR and vapor phase) and wave soldering.
The components can withstand 260°C for 10 seconds.
