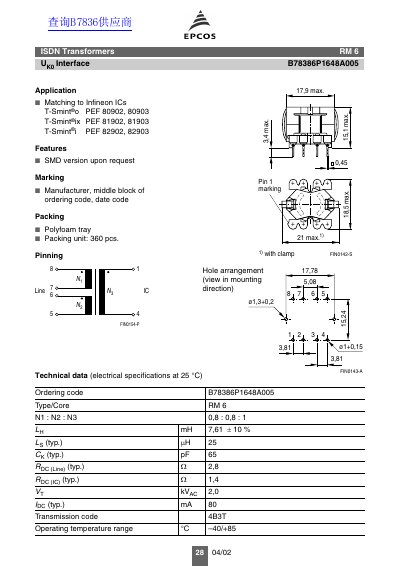

EPCOS B78386P1648A005 ISDN Transformer Datasheet

This document is the technical data manual of EPCOS AG's B78386P1648A005 type ISDN transformer UK0 interface

Brand: Epcos
Category: Other Electronics
Document type: Datasheet
Language: German
Pages: 2
File format: PDF
File size: 363 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1857B71774A7E64F6E557710CF3D6D62
PDF: EPCOS B78386P1648A005 ISDN Transformer Datasheet PDF

About this manual

This document is a technical datasheet for the EPCOS B78386P1648A005 ISDN transformer, specifically designed for UK0 interface applications. It details compatibility with Infineon ICs from the T-Smint® series (PEF 80902/80903 and PEF 81902/81903/82902/82903). This manual is written in German.

What's inside

Features
Marking
Pinning
Technical data (electrical specifications)
Ordering code

Specifications

Operating temperature range	-40/+85 °C
Packing unit	360 pcs.
Transmission code	4B3T

Frequently asked questions

What is the operating temperature range for this transformer?

The device operates within a temperature range from –40 to +85 °C.

What is the maximum voltage rating for this transformer?

The transformer has a rated voltage of 2.0 kVAC.
