B57236S0259L002 is a current limiting resistor from Schneider Electric with close resistance tolerance, improved insulation voltage, usable in series connection up to 265Vrms, coated thermistor disk, kinked leads of tinned copper wire, wide resistance range and UL approval (E69802).

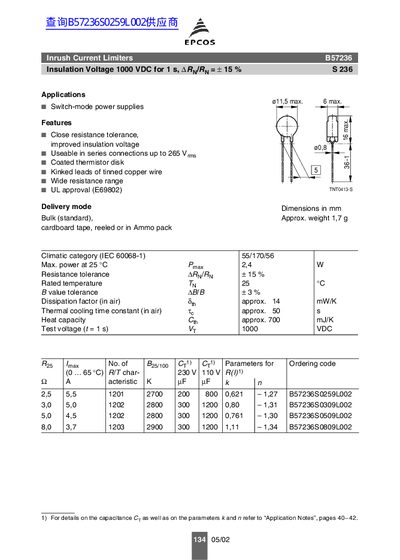

This document is a datasheet for the EPCOS B57236 series of inrush current limiters. These components are coated thermistor disks designed for use in switch-mode power supplies and other applications requiring current limiting. The datasheet specifies that these units can be used in series connections up to 265 Vrms and feature close resistance tolerance with an improved insulation voltage of 1000 VDC for 1 second.
| Insulation Voltage | 1000 VDC for 1s |
|---|---|
| Resistance Tolerance | +15 % |
| Rated Temperature | 25 °C |
| Max. Power at 25 °C | 2,4 W |
| Test Voltage | 1000 VDC |
| Climatic Category | 55/170/56 |
They are suitable for switch-mode power supplies.
They are available in Bulk (standard), cardboard tape, reeled, or in Ammo pack.
