Start here

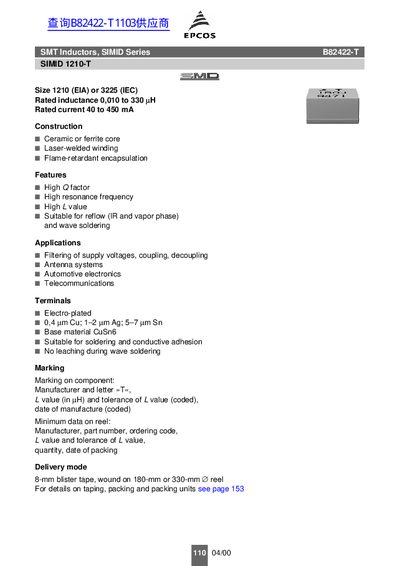

EPCOS BB2422-T DATA SHEET
Datasheet 7 pages · 378 KB · EN
This document provides technical data for the EPCOS SIMID Series B82422-T SMT inductors, available with either ceramic or ferrite cores. The components feature a 1210 (EIA) or 3225 (IEC) package size and are suitable for reflow and wave soldering processes.
Read onlineEpcos B82422-T specifications
| Size (EIA) | 1210 |
|---|---|
| Rated inductance range | 0.010 to 330 uH |
| Rated current range | 40 to 450 mA |
| Core materials | Ceramic or ferrite |
| Climatic category | 55/125/56 |
| Soldering heat resistance | 260°C, 10s |
Source: EPCOS BB2422-T DATA SHEET
All Epcos B82422-T documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are these components suitable for wave soldering?
Yes, they are suitable for reflow (IR and vapor phase) and wave soldering.
What is the rated inductance range for this SMT inductor?
The rated inductance ranges from 0,010 to 330 uH.
What soldering processes are these inductors suitable for?
The components are suitable for reflow (IR and vapor phase) and wave soldering.
What is the maximum permissible temperature during soldering?
The components can withstand 260°C for 10 seconds.
