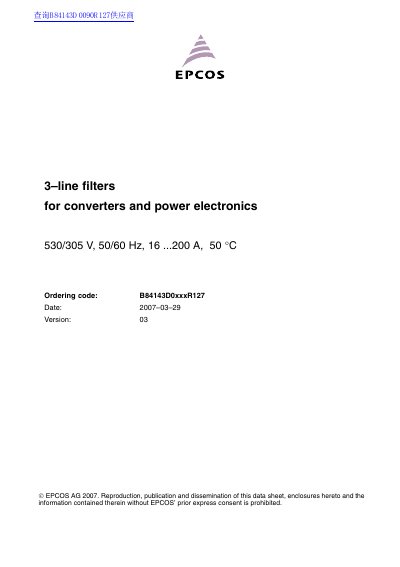

B84143D0xxxR127 is a 3-line filter for converters and power electronics. It has high insertion loss, optimized for long cables, easy to install, low weight, compact design, IP20 protection and so on.
The document describes the construction, features, and applications of EPCOS 3-line filters (Ordering code: B84143D0xxxR127). These metal-case filters are optimized for long motor cables and operation under full load. They comply with standards such as EN 60939, UL 1283, and CSA 22.2 No.8.
| Rated voltage UR | 530/305 V AC |
|---|---|
| Rated frequency fR | 50/60 Hz |
| Test voltage line to line | 2200 V DC for 2 s |
| Rated temperature TR | 50 °C |
| Degree of protection | IP 20 |
The filter supports an overload of 1.5 x IR for 3 min per hour or 2.5 x IR for 30 s per hour.
The rated voltage for these filters is 530/305 V AC.
