This document provides ordering information and specifications for the Surge Arrester EC230X 2-Electrode-Arrester. The product features a DC spark-over voltage of 230V and various impulse spark-over voltages. Additionally, it has nominal impulse discharge current, alternating discharge current, insulation resistance, and operation and storage temperature.

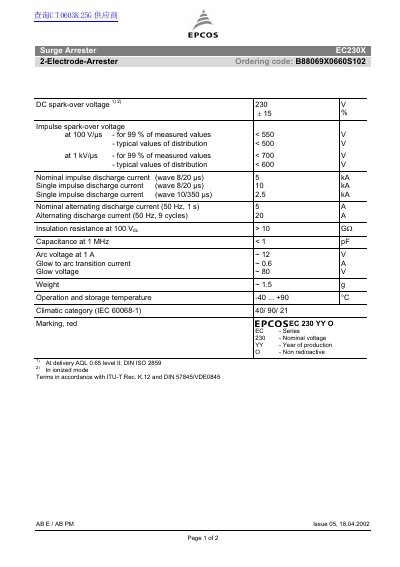

This document is a datasheet for the EPCOS EC230X, a 2-electrode surge arrester. It provides technical specifications such as DC and impulse spark-over voltages, nominal impulse discharge currents, and insulation resistance values.
The document also details physical characteristics including weight, capacitance, and arc voltage, along with operating and storage temperature ranges from -40 to +90 °C. It includes ordering code information and climatic category classification.
| DC spark-over voltage | 230 ± 15 V |
|---|---|
| Insulation resistance | > 10 GΩ |
| Capacitance at 1 MHz | < 1 pF |
| Weight | ~ 1.5 g |
| Operation and storage temperature | -40 ... +90 °C |
The ordering code is B88069X0660S102.
The climatic category is 40/90/21 according to IEC 60068-1.
Yes, the marking 'O' indicates it is non-radioactive.
