This document describes the application of HDSL interface xDSL transformers, matched to Booktree IC BT 8960. It has a data transfer rate of 288 kB/s and is available in SMD version upon request. The marking includes the manufacturer, middle block of ordering code, and date code. It is packed in a polyfoam tray with a packing unit of 500 pcs. The technical data includes ordering code, type/core, inductance, and other electrical specifications.

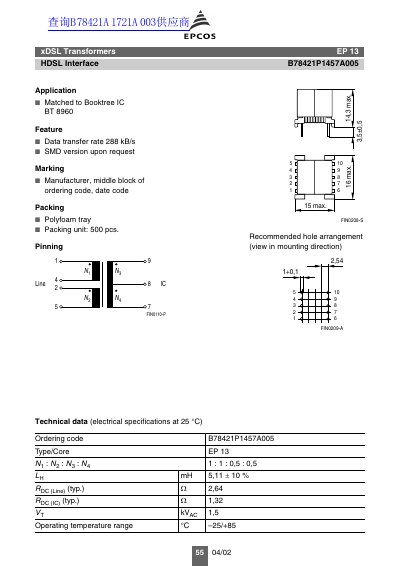

This document is a datasheet for the EPCOS EP13 HDSL interface transformer. It provides technical details including electrical specifications such as turn ratios, inductance, resistance, voltage withstand capability, and operating temperature range.
The datasheet also includes ordering information with specific codes (e.g., B78421P1457A005), packing details indicating polyfoam trays of 500 units, and pinning diagrams for mounting. It notes that the data applies at 25 °C. This manual is written in German.
| Data transfer rate | 288 kB/s |
|---|---|
| Turn ratio N1 : N2 : N3 : N4 | 1 : 1 : 0,5 : 0,5 |
| Inductance LH (typ.) | 5,11 mH /G150 10 % |
| DC Resistance Line (typ.) | 2,64 ohm /G87 |
| DC Resistance IC (typ.) | 1,32 ohm /G87 |
| Voltage withstand VT | 1,5 kVAC |
| Operating temperature range | -25/+85 °C |
The device supports a data transfer rate of 288 kB/s.
The transformer operates within a temperature range of –25/+85 °C.
