This document introduces the features of Microchip Technology Inc.'s PIC16C72/PIC16CR72 microcontrollers, including CPU, clock frequency, memory, interrupts, power management, timer, capture, compare, PWM, etc.

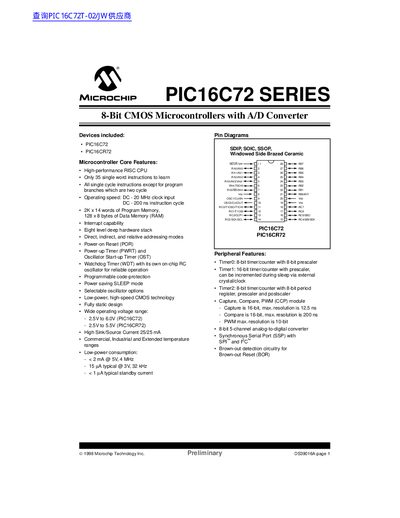

This document provides device-specific information for the operation of the PIC16C72 Series 8-bit CMOS microcontrollers. The devices belong to the Mid-Range family and feature a high-performance RISC CPU with only 35 single-word instructions. Key features include an on-chip A/D converter, multiple timers (Timer0, Timer1, Timer2), Capture/Compare/PWM modules, and a Synchronous Serial Port supporting SPI and I²C protocols.
| Program Memory Size | 2K x 14 words |
|---|---|
| Data Memory Size | 128 x 8 bytes |
| Operating Speed | DC - 20 MHz |
| Instruction Cycle Time | 200 ns |
| Operating Voltage (PIC16C72) | 2.5V to 6.0V |
| Operating Voltage (PIC16CR72) | 2.5V to 5.5V |
| A/D Converter Channels | 5 channels |
The device supports only 35 single word instructions to learn.
The devices operate with a clock input up to 20 MHz.
