25AA256/25LC256 is a 256k-bit Serial Electrically Erasable Programmable Read-Only Memory (Serial Electrically Erasable Programmable Read-Only Memory) produced by Microchip Technology Inc.

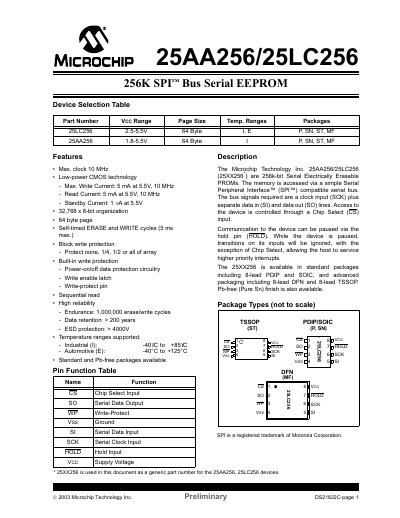

This document describes the Microchip Technology 25AA256/25LC256, which are 256k-bit Serial Electrically Erasable PROMs. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus requiring clock input (SCK), data in (SI), and data out (SO) lines.
| Memory Size | 256k-bit |
|---|---|
| Organization | 32,768 x 8-bit |
| Max Clock Frequency (4.5V-5.5V) | 10 MHz |
| Endurance | 1,000,000 erase/write cycles |
| Data Retention | > 200 years |
| ESD Protection (ST) | > 4000V |
The Industrial version operates with a supply voltage of 1.8V to 5.5V.
The Automotive version operates with a supply voltage of 2.5V to 5.5V.
The maximum write current is 5 mA when operating at 5.5V.
