Introduces the characteristics of Microchip's DS30475A chip, including high-performance RISC CPU, high current input/output, four external interrupt pins, two capture/compare/PWM modules, master synchronous serial port (MSSP), 10-bit analog-to-digital converter module (A/D) and so on.

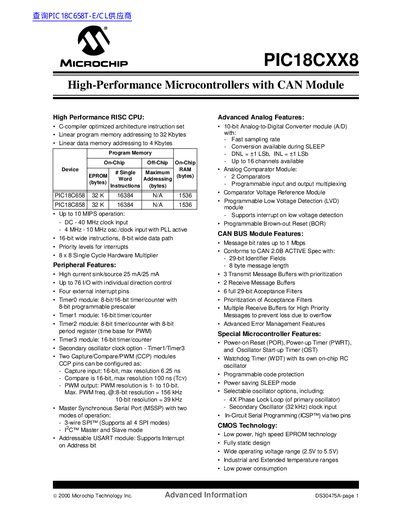

This document provides technical information for the PIC18CXX8 family of High-Performance Microcontrollers with a CAN Module. The devices feature a High Performance RISC CPU optimized for C-compilers, offering linear program memory addressing up to 32 Kbytes and data memory addressing up to 4 Kbytes.
| Program Memory | 32K Words (16384 bytes) |
|---|---|
| Data RAM | Up to 1536 Bytes |
| Operating Speed | Up to 10 MIPS (40 MHz) |
| Clock Input | 40 MHz |
| I/O Pins | Up to 76 pins |
| Operating Voltage | 2.5V to 5.5V |
The CAN BUS Module supports message bit rates up to 1 Mbps.
Yes, it includes a Secondary oscillator clock option for Timer1/Timer3.
