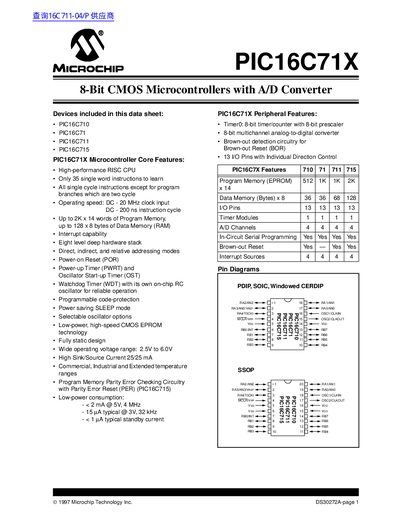

This document introduces the features and characteristics of the PIC16C71X series of 8-bit CMOS microcontrollers
The document describes the PIC16C71X family of low-cost, high-performance 8-bit CMOS microcontrollers. These devices feature a fully-static architecture with a high-performance RISC CPU that executes most instructions in a single cycle. The family includes models such as the PIC16C710, PIC16C711, and PIC16C715, offering varying amounts of program memory (up to 2K words) and data RAM (up to 128 bytes).
| Operating Speed | DC - 20 MHz clock input |
|---|---|
| Instruction Cycle | DC - 200 ns |
| Program Memory (PIC16C715) | Up to 2K x 14 words |
| Data Memory (RAM) (PIC16C715) | Up to 128 x 8 bytes |
| Operating Voltage Range | 2.5V to 6.0V |
| A/D Channels | 4-channel high-speed 8-bit |
The microcontroller supports a total of 35 single word instructions.
Yes, it has a Watchdog Timer with its own on-chip RC oscillator for reliable operation.
