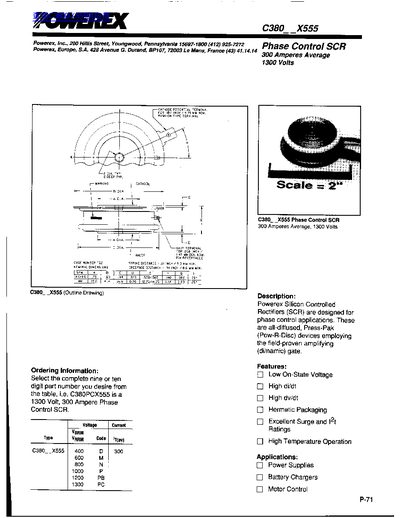

This document provides technical specifications and characteristics for the Powerex C380_X555 Phase Control SCR. The device is a 1300 Volt, 300 Ampere Average all-diffused Press-Pak component designed for phase control applications such as power supplies, battery chargers, and motor control.
| Average On-State Current @ Tc = 85°C | 300 Amperes |
|---|---|
| Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz) | 3200 Amperes |
| Critical Rate-of-Rise of On-State Current (Repetitive) | 300 Amperes/ps |
| Peak Gate Power Dissipation | 10 Watts |
| Storage Temperature | -40 to 150 °C |
| Peak On-State Voltage Vm | 2.85 Volts |
| Maximum Thermal Resistance Junction to Case (Double sided cooling) | 0.095 °C/Watt |
The maximum allowable gate power dissipation is 2 watts for DC trigger points.
