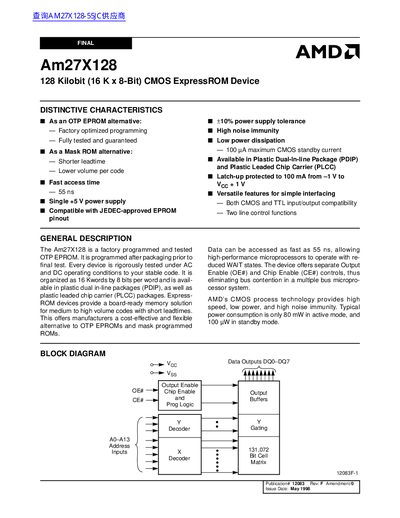

The Am27X128 is a 128 kilobit (16 K x 8-bit) CMOS ExpressROM device with factory optimized programming and fully tested characteristics. It can serve as an alternative to OTP EPROM and Mask ROM, offering shorter lead times and lower volume per code. The device features fast access time, single +5V power supply, compatibility with JEDEC-approved EPROM pinout, and other versatile features for simple interfacing.
The AMD Am27X128 is a factory-optimized One-Time Programmable (OTP) ExpressROM device organized as 16 Kwords by 8 bits. It serves as an alternative to Mask ROM and standard OTP EPROMs, offering fast access times starting at 55 ns and low power dissipation with a maximum CMOS standby current of 100 pA.
| Organization | 16 K x 8-Bit |
|---|---|
| Max CMOS Standby Current | 100 pA |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
The device is organized as 16 Kwords by 8 bits per word.
The device is available in Plastic Dual-In-line Package (PDIP) and Plastic Leaded Chip Carrier (PLCC).
