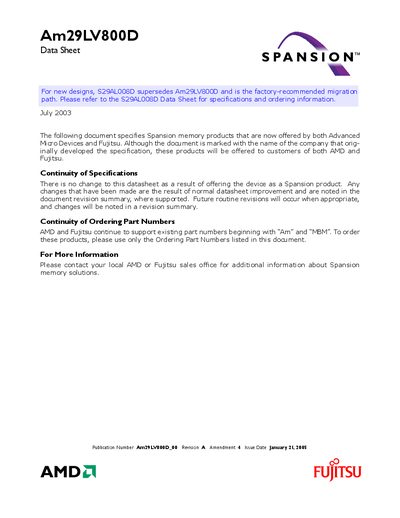

Am29LV800D Data Sheet provides detailed information on Spansion's memory products.
The Am29LV800D is an 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) Flash memory device manufactured on a 0.23 µm process technology. It operates with a single 3.0 volt power supply for read, program, and erase operations and offers access times as fast as 70 ns.
The device features flexible sector architecture supporting byte mode (16 Kbyte, 8 Kbyte, 32 Kbyte, and 64 Kbyte sectors) and word mode (8 Kword, 4 Kword, 16 Kword, and 32 Kword sectors). It includes embedded algorithms for automatic preprogramming and erasing, sector protection features to lock specific areas against program or erase operations, and hardware reset capabilities.
The device guarantees a minimum of one million write cycles per sector.
Data is retained for 20 years when operating at 125°C.
The standard device offers access times of 70, 90, and 120 ns.
