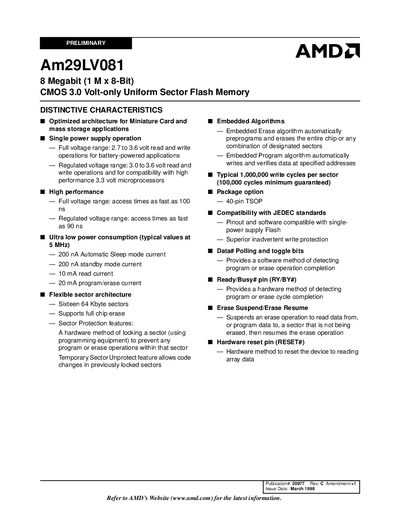

This document describes the features and characteristics of Am29LV081 8 Megabit (1 M x 8-Bit) CMOS 3.0 Volt-only Uniform Sector Flash Memory, including optimized architecture, single power supply operation, high performance, ultra-low power consumption, flexible sector architecture, and embedded algorithms.
The document describes the Am29LV081, an 8 Mbit (1 M x 8-Bit) Flash memory device organized in a byte-wide format. It is designed for single power supply operation with a regulated voltage range of 3.0 to 3.6 volts and a full voltage range of 2.7 to 3.6 volts, making it suitable for battery-powered applications.
Key features include high performance access times as fast as 90 ns (regulated) or 100 ns (full voltage), ultra-low power consumption with automatic sleep mode current of 200 nA, and a flexible sector architecture supporting sixteen 64 Kbyte sectors. The device offers embedded algorithms for erase and program operations and includes hardware data protection measures such as sector locking and inadvertent write protection.
| Capacity | 8 Megabit (1 M x 8-Bit) |
|---|---|
| Voltage Range (Regulated) | 3.0 to 3.6 volt |
| Voltage Range (Full) | 2.7 to 3.6 volt |
| Access Time (Regulated) | 90 ns |
| Access Time (Full Voltage) | 100 ns |
| Sleep Mode Current | 200 nA |
| Standby Mode Current | 200 nA |
| Read Current | 10 mA |
| Program/Erase Current | 20 mA |
| Sectors | Sixteen 64 Kbyte sectors |
The device is offered in a 40-pin TSOP package.
It supports typical 1,000,000 write cycles per sector.
Yes, it includes a Hardware reset pin (RESET#) to reset the device.
