This catalog introduces Amphenol 62GB series connector accessories, including plugs and receptacles. These accessories can meet a variety of application requirements.

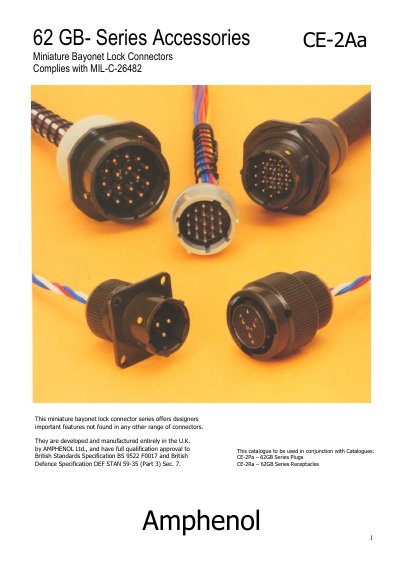

The document describes a range of accessories designed for the Amphenol 62GB Series Miniature Bayonet Lock Connectors. These items are intended to be used in conjunction with the main plug and receptacle catalogues (CE-2Pa and CE-2Ra) to complete connector assemblies.
The accessories include caps and chains for single hole mounting, cable mounting, flange mounting, and plugs. The data sheet provides specific dimensional tables for these components across various shell sizes, ranging from 3.0mm to 4.0mm diameter.
| Operating Temperature Range | -55°C to 125°C |
|---|---|
| Compliance Standards | MIL-C-26482, BS 9522, DEF STAN 59-35 |
| Material (Shell) | Solid aluminium bar stock |
This catalogue must be used in conjunction with Catalogues CE-2Pa (62GB Series Plugs) and CE-2Ra (62GB Series Receptacles).
The total maximum hot spot temperature must not exceed 125°C.
Engagement torque is a maximum of 0.90 Nm (8.0 lbf.in.) and separation torque is a minimum of 0.22 Nm (2.0 lbf.in.).
Hermetic receptacles have a maximum leak of 0.1 micron cubic foot per hour.
