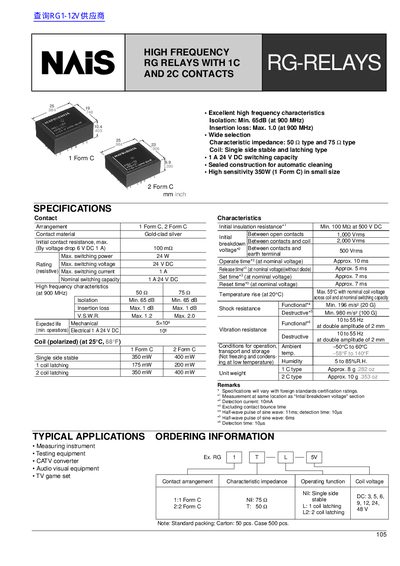

The document describes the features and characteristics of a 105 Arrangement Contact Coil (polarized) product, including different contact forms, power ratings, operating temperature and humidity ranges, etc.
This document provides technical specifications and performance data for the RG series of high-frequency relays manufactured by Matsushita Electric Works, Ltd. The product line includes single side stable and latching types (RG1) as well as dual coil latching models (RG2), designed for applications requiring excellent high-frequency characteristics up to 900 MHz.
| Isolation (at 900 MHz) | Min. 65dB |
|---|---|
| Insertion loss (at 900 MHz) | Max. 1.0 dB |
| Characteristic impedance types | 50 Ω and 75 Ω |
| Max. switching voltage (resistive) | 24 VDC |
| Max. switching current | 1A |
| Operate time (at nominal voltage) | Approx. 10 ms |
The relays provide a minimum isolation of 65 dB when operating at 900 MHz.
The maximum insertion loss is 1.0 dB when operating at 900 MHz.
Soldering must be performed within 10 seconds at 250°C, or within 3 seconds at 350°C.
