TF-RELAYS is a small electromagnetic relay with high sensitivity, low magnetic interference and automatic cleaning.

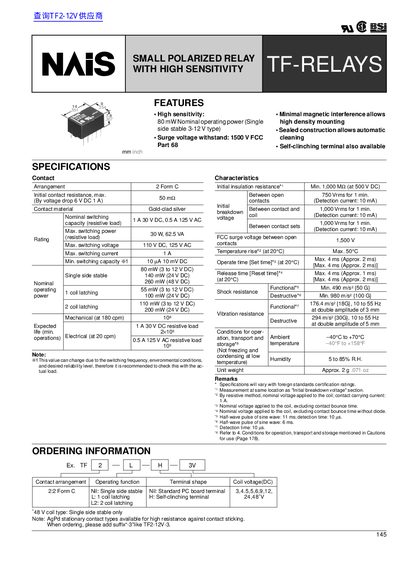

This document provides technical specifications and performance data for the NAIS TF-RELAYS series of small polarized relays. Key features include high sensitivity with a nominal operating power of 80 mW for single-side stable types, and a surge voltage withstand of 1500 V FCC. The relays are designed for high-density mounting due to minimal magnetic interference and feature sealed construction for automatic cleaning.
| Nominal operating power (Single side stable) | 80 mW |
|---|---|
| Surge voltage withstand | 1500 V FCC |
| Initial insulation resistance | Min. 1,000 MΩ |
| Max. switching power | 30 W |
| Max. switching voltage | 110 V DC, 125 V AC |
| Max. switching current | 1A |
| Unit weight | Approx. 2 g |
The nominal operating power is 80 mW for single-side stable 3-12 V types.
Yes, self-clinching terminals are available as an option.
