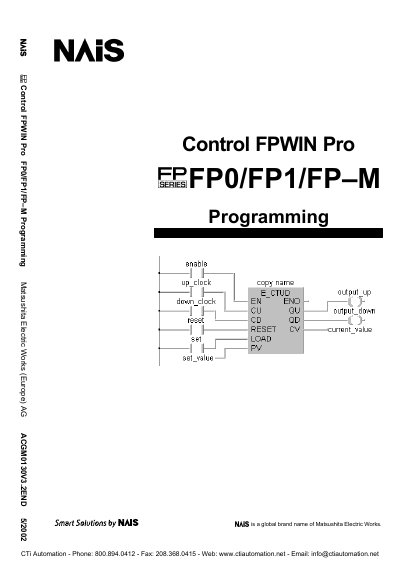

Control FPWIN Pro FP0/FP1/FP–M Programming
This manual provides detailed information for programming the Panasonic FP0/FP1/FP–M PLC controllers. It includes safety warnings, warranty terms, and a comprehensive index of all supported instructions.
The document is organized into three parts: Basics, IEC Functions and Function Blocks, and Matsushita‑specific instructions. Each part lists conversion, arithmetic, bit‑wise, and timing functions, as well as high‑speed counter, pulse, and PWM output specifications.
| Maximum counting speed | 10 kHz |
|---|---|
| Maximum pulse output frequency (1‑point) | 10 kHz |
| Maximum pulse output frequency (2‑point) | 5 kHz |
| PWM frequency range | 0.15 Hz to 38 Hz |
The high‑speed counter can count up to 10 kHz.
No, a channel cannot be shared between those functions.
PWM can operate from 0.15 Hz up to 38 Hz.
