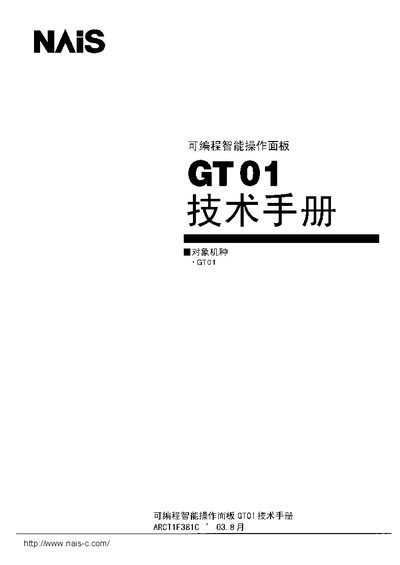

Service manual for the NAIS GT01 panel covering specifications, installation, wiring, settings, PLC communication, maintenance and troubleshooting.
The NAIS GT01 Service Manual provides detailed information on the panel's specifications, installation procedures, wiring diagrams, and configuration steps. It includes guidance for setting up communication with NAIS PLC‑FP series devices and customizing the panel's environment.
Additional sections cover the use of various functions such as screen switching, backlight control, and touch‑switch operation, as well as maintenance, replacement parts, and troubleshooting procedures with error‑code references.
| Rated power supply | 5V DC |
|---|---|
| Operating voltage range | 4.5V DC ~ 5.5V DC |
| Power consumption | < 1 W |
| Operating temperature | 0 °C ~ 50 °C |
| Display resolution | 128 × 64 dots (STN monochrome LCD) |
| F‑ROM memory capacity | 384 kbyte |
| RS‑232 communication speeds | 9.6 kbit/s – 115.2 kbit/s |
The GT01 package contains the main unit, a set of installation metal parts, and a communication connector.
Use the COM port to connect to the PLC‑FP series as described in chapter 4; the manual lists specific connection steps for each FP model.
The panel operates correctly between 0 °C and 50 °C.
The STN monochrome LCD has a resolution of 128 × 64 dots, supporting two colors (black and white).
