411 HP-RELAYS 10 AMP POWER RELAY VDE 2c, 3c is a high-quality relay launched by Panasonic. It has the characteristics of interchangeability, long service life, high reliability, and a maximum working current of 10A 250 V AC. It can be selected with plug-in/solder and quick-connect terminals.

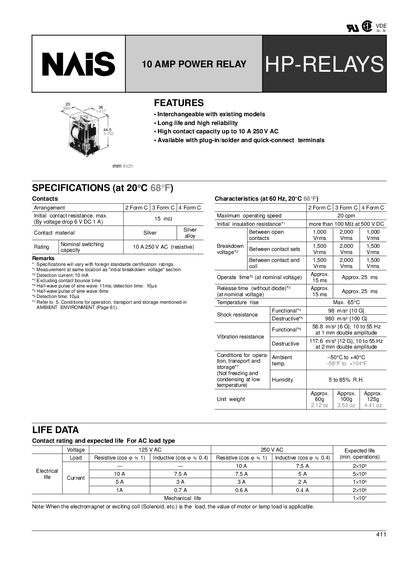

This document provides technical specifications for the NAIS HP-RELAYS series of power relays. Key features include interchangeability with existing models, long life, high reliability, and contact capacities up to 10 A at 250 V AC.
The datasheet lists detailed electrical characteristics for various configurations, including Form C contacts available in standard plug-in, direct mounting (M), and top mounting (TM) styles. It covers both DC and AC coil types with voltages ranging from 6V to 115V/240V.
| Max Contact Capacity | 10 A 250 V AC |
|---|---|
| Initial Contact Resistance | Max. 15 mΩ |
| Ambient Temperature Range | -50°C to +40°C |
| Unit Weight (Form C) | Approx. 60g |
The relay has a high contact capacity of up to 10 A at 250 V AC.
Yes, the relays are available with plug-in/solder terminals or quick-connect terminals, as well as direct and top mounting types.
