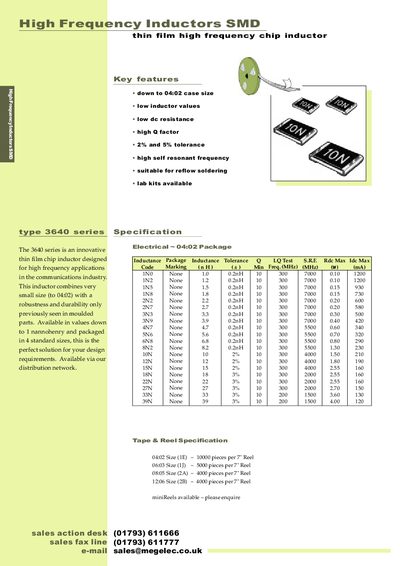

The document describes the Type 3640 series as an innovative thin film chip inductor designed for high-frequency applications within the communications industry. It highlights key features such as a small case size down to 04:02, low DC resistance, and suitability for reflow soldering.
Detailed technical specifications are provided for four standard package sizes (1E, 1J, 2A, and 2B), covering inductance values from 0.2 nH to 100 nH with tolerances of 2% or 5%. The datasheet includes tables for electrical parameters like Q factor, self-resonant frequency, and maximum current, as well as dimensional drawings and ordering codes.
The inductors operate within a temperature range of -40°C to +85°C.
The 12:06 Size (2B) includes approximately 4000 pieces per 7" Reel.
